I am running a MASCHIO 47" offset flail on my 1025R. "Is it too much for the 1025R?". Technically yes, but very manageable. When fully lifted the pressure relief valve kicks in, but I just lower it a very little and the pressure relief valve kicks outs. You absolutely need a hydraulic top link to operate it with. When the flail mower is extended it won't lift at all. This is not a real problem, I just drive forward or backwards and retract it until it will lift. I installed a Summit four valve rear hydraulic kit with the two pushbuttons and loader pushbutton handle. I put the valves on the right side ropes instead of the left hand side to make it easier to get on and off the bachhoe when its on (no real issue with visibility). Overall the offset feature is awesome and well worth the minor issues when operated on a 1025R.
GIRAFFA 120 S "WEEKEND WARRIOR" - 47" Side Offset Flail Mower(3 Point)
Manufacturer: MASCHIO-GASPARDO
Select Model:
MASCHIO GIRAFFA 120 S "WEEKEND WARRIOR"
47" Side Offset Flail Mower(3 Point)
Discover the MASCHIO Weekend Warrior line specific for Compact & Utility Tractors 15-40hp.
The GIRAFFA 120 S "WEEKEND WARRIOR" - 47" Side Offset Flail Mower(3 Point) is an extremely versatile product. It can be used to mulch grass or small brush and prune branches. Discover its stunning lightweight and versatile characteristics that make it perfect for compact tractors. The same machine can work behind AND on the side of a tractor, prune a hedge vertically, and service banks and slopes. Now all models of Side Offset Mowers include the MASCHIO Flow Restrictor Kit - M99500B61 (4 pcs) for better finesse when operating the tilt and offset positions.
***It requires a three-point connection CAT I, PTO Rotation of 540 RPM, and 2 Hydraulic Remotes are needed(a Total of 4 Rear Hydraulic Outlets). If your tractor has only 1 Hydraulic Remote (2 Rear Hydraulic Outlets) on the back of the tractor, you can use the kit we sell, the NOT compatible with the Quick Hitch Kit/ Or JD iMatch System, or Quick Hitch Couplers.
The rotor turns at 2000 rpm and is belt driven. The hammers fold back to avoid damages while hitting stones or large debris.
Why a flail mower?
- Provides quality cutting like a finishing mower with the ability to chop thick residues as a rotary cutter.
- Close placement to the tractor makes it less bulky for storage and maneuvers effortlessly at corners.
- Safer than rotary cutters when working near vehicles or pedestrians; flail mowers don't eject debris sideways.
- The rear roller avoids scalping.
- High rotor speed with low vibrations
- Rotors of MASCHIO flail mowers are digitally balanced in order to reduce vibration and improve long term reliability.
Hydraulic horizontal and tilt

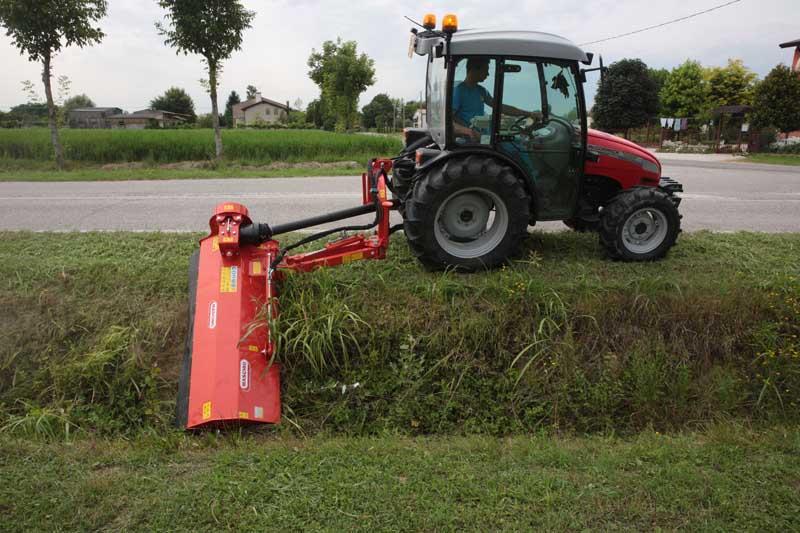

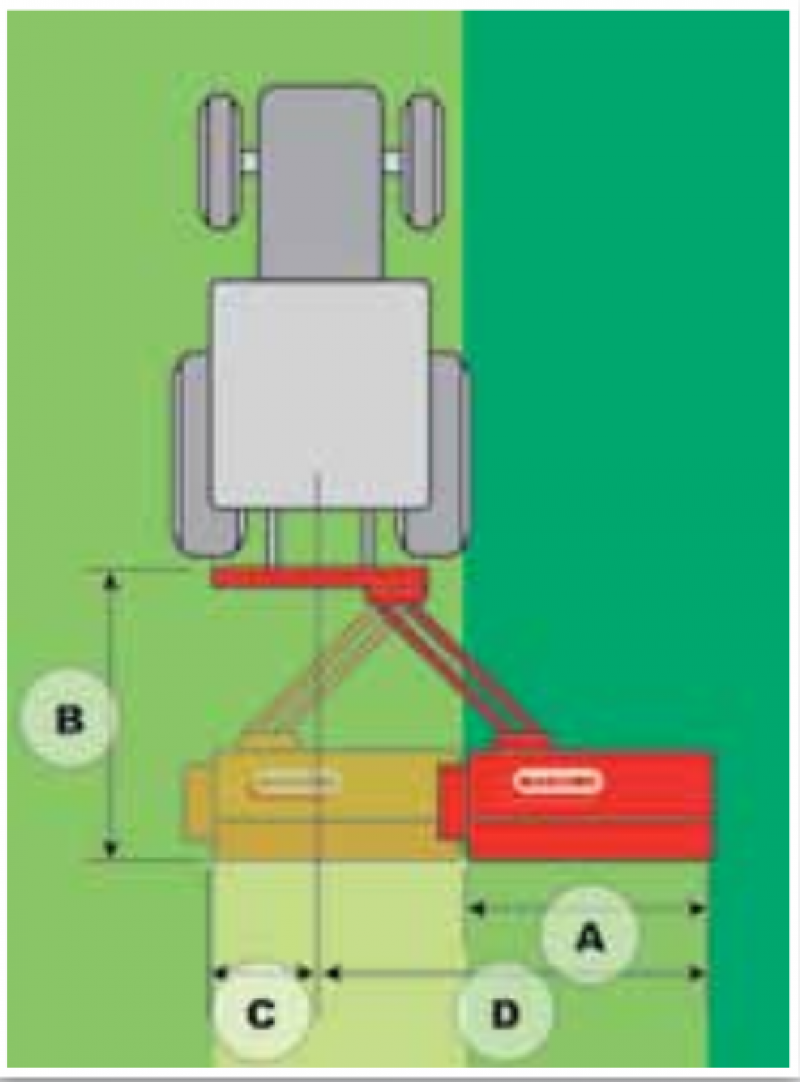

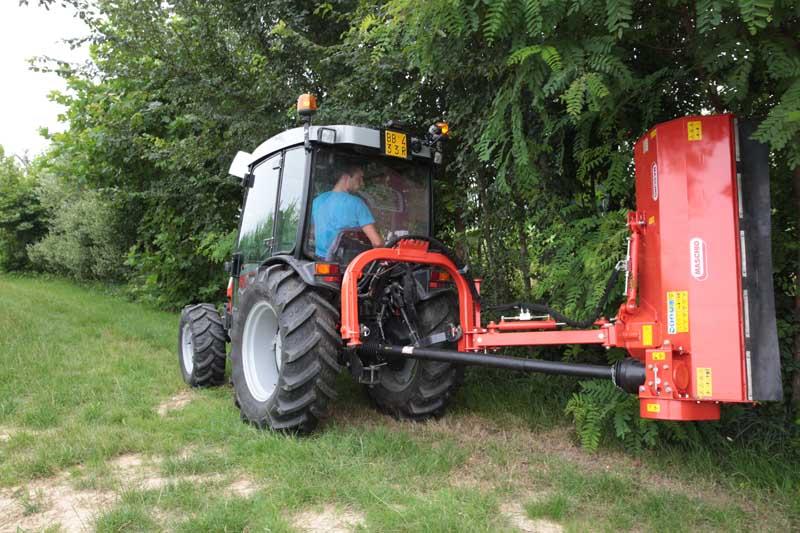

The hydraulic offset flail mower comes as standard with hydraulically adjusted side and incline offset. It allows the flail mower to work either directly behind the tractor or to the side with the ability to work on vertical (+90°) or steep sloping (-65°) surfaces.
MASCHIO offers a wide range of mulchers suitable to satisfy the need of ALL users, from compact and light machines for gardening and green area maintenance to professional straw choppers. All mulchers feature a high-quality standard and innovative technical solutions. Such a large set of possible configurations and models provides the right solution to make EVERY job profitable. For professional products please visit our website at www.maschio.us or contact your nearest MASCHIO dealer.
