"BIG MOUTH" MINI 320 Grapple Rake - Double Grapples(John Deere Only)

BIG MOUTH + Light Weight = More Material Picked Up!

The  "BIG MOUTH" MINI 320 Grapple Rake - Double Grapples(John Deere Only) is the perfect grapple rake for John Deere tractors with less than 40 horsepower.  The “rake” feature allows the operator to gather (rake) loose material into a pile.  The large 48” opening also closes tight to securely hold small or large loads.  The concealed cylinders and hydraulics are fully protected and will not snag on limbs and brush.

Features include :

• 48” Opening, 50” Wide and Weighs 255 lbs
• Fully Plumbed with John Deere Quick Attach Brackets
• Reinforced Rake Tines (End Tines are Double Reinforced)
• Double Grapples
• Recommended for up to 40hp tractors
• 47" Supply Lines & Your Choice of Pioneer Couplers Included

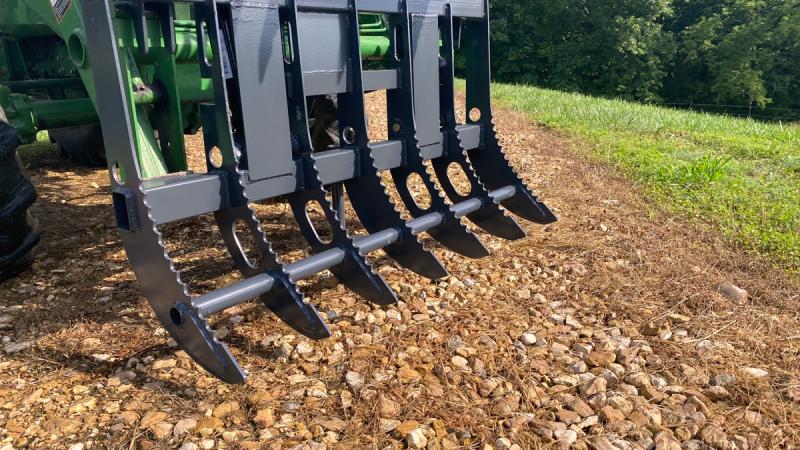

All pivot points are greased for long lasting wear.  The spacing of rake tines is between 9” and 10” which allows the operator to rake small or large material and at the same time sift the dirt.  Each tine is reinforced for extra strength.  The end tines on the rake are double reinforced.

Note: The "BIG MOUTH" MINI 320 Grapple Rake includes 47" supply lines with your choice of Pioneer Coupler sizes. There are several options available for Pioneer See Coupler Size Chart Below.

Please select which Pioneer Couplers best fit your tractor.

IMPORTANT CONSIDERATIONS WHEN SHOPPING FOR A GRAPPLE

• Do you want to add a grapple to your existing bucket or remove your bucket and attach a grapple rake?
• Do you have auxiliary hydraulic outlets? If not, see accessories for Xtra Valve Kit. If you have a set of outlets in the rear of your tractor you might want to run a set of hoses from those outlets to the front of your tractor. Conceal them and secure with cable ties so the hoses do not get in the way. Now you can put couplers on the ends and have a disconnect point at the front of the tractor instead of having long hoses to manage.
• How do you intend to use the grapple? Cleaning barns, picking up loose hay, moving round hay bales, brush or construction debris? Choose the right grapple for your job.
• What is the lift capacity of your loader? Choose a grapple that is less than 50% of your loader lift capacity but still strong enough to do the job.
• What is your price range? This is a slippery slope. Choosing a low price grapple may cost you more in the long run, plus frustrate you.

IMPORTANT FEATURES TO LOOK AT WHEN CHOOSING A GRAPPLE

The width of the opening may be the most important feature of a grapple. A wider grapple opening means you can grab more material. Some are even wide enough to grab large round bales. Spacing of tines is important. For brush we think 6” is ideal. It is wide enough to sift the dirt yet tight enough to hold smaller brush. For rock buckets we think 3” is ideal for the same reasons. Single grapple or double grapple? We sell far more doubles than singles. Mainly because with a double grapple you can clamp down on uneven loads. Almost all brush loads will be uneven. A single grapple may be preferred for picking up even material such as hay bales. A grapple that weighs over 50% of your lift capacity may limit the material you are able to carry. Choose one slightly less than 50%. Getting one too light will be costly in the long run.
